Integrals, Sums & Limits

Integrals

Integral expression can be added using the \int_{lower}^{upper} command.

Note, that integral expression may seems a little different in inline and display math mode.

LATEX code

Output

Integral \(\int_{a}^{b} x^2 \,dx\) inside text

Example of an integral inside text

\[ \int_{a}^{b} x^2 \,dx \]

Example of an integral

Multiple integrals

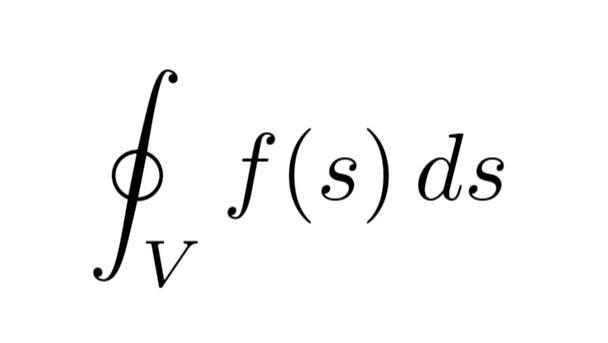

To obtain double/triple/multiple integrals and cyclic integrals you must use amsmath and esint (for cyclic integrals) packages.

LATEX code

Output

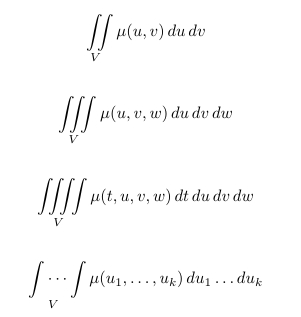

Example of multiple integrals

Example of integrals

Sums and products

Like integral, sum expression can be added using the \sum_{lower}^{upper} command.

LATEX code

Output

Sum $\sum_{n=1}^{\infty} 2^{-n} = 1$ inside text

Example of sum expression inside text

\[ \sum_{n=1}^{\infty} 2^{-n} = 1 \]

Example of sum expression

In similar way you can obtain expression with product of a sequence of factors using the \prod_{lower}^{upper} command.

LATEX code

Output

Product $\prod_{i=a}^{b} f(i)$ inside text

Example of limit expression inside text

\[ \prod_{i=a}^{b} f(i) \]

Example of limit expression

Limits

Limit expression can be added using the \lim_{lower} command.

LATEX code

Output

Limit $\lim_{x\to\infty} f(x)$ inside text

Example of limits inside text

\[ \lim_{x\to\infty} f(x) \]

Example of limits
